Cat 250 vs JCB 300

Caterpillar

Cat 250

$66,000

4.5★ (140)

JCB

$67,000

4.4★ (95)

Quick take: The Cat 250 costs $1,000 less; the JCB 300 has a higher rated operating capacity (3,186 vs 2,689 lbs).

✓The 2,689 lb rated operating capacity essentially matches the bigger 262D3 it helps replace, so buyers get medium-frame lifting numbers in a lighter, cheaper package.
✓At 7,829 lbs it tows comfortably on a standard 10k equipment trailer with attachments, a practical advantage owners highlight over the heavier 260 and every CTL.
✓The new C2.8T holds its 74 hp across a wide RPM band with a big torque gain over the old D3 engines, and operators say it lugs through pushing and grading work without the constant downshifting feel.
✓The sealed, pressurized one-piece cab filters out dust and drops noise dramatically - rental operators note even first-time users comment on how quiet it is.
✓The 124-inch bucket pin height is 3 inches taller than the outgoing machines, enough to clear the sideboards on most tandem dump trucks.
✓No DEF system thanks to the sub-75 hp rating means one less consumable and no SCR sensors to fail, a real reliability plus for high-hour fleet duty.
✓Factory High Flow-ready plumbing means the 30 GPM upgrade is an enablement rather than a retrofit, so the machine can grow into hungrier attachments later.
✓The 8-inch touchscreen, rearview camera, and standard Product Link telematics bring fleet-management features to a price class where competitors still charge extra.

✗Standard auxiliary flow is 20 GPM versus 23 GPM on the old 262D3, so some attachments that ran fine on the D3 need the High Flow enablement on the 250.
✗The next-gen price premium is real - it lists thousands above the equivalent outgoing D3, and budget buyers note Bobcat's S66 and Case's SR-series undercut it.
✗Wheeled machines still can't follow CTLs onto soft or muddy ground, and buyers in wet climates increasingly skip straight to the 255 despite the higher price.
✗As the smallest of the new wheeled line it shares its frame with the 260, so it gives up capacity to its sibling while costing only moderately less - several reviewers call the 260 the better value.
✗Early-production software glitches with the touchscreen and displays showed up across the next-gen line, and fixes require a dealer visit rather than an owner reset.
✗The electronics-rich platform makes DIY troubleshooting harder than the D3s, effectively increasing dependence on Cat dealer service at whatever rates they charge.
✗The used market hasn't established residuals for the new series yet, making lease-end and trade-in values a guess compared to the deeply documented D3 machines.
✗Optioning it up with XPS hydraulics, premium seat, and advanced display erodes the price advantage that makes the 250 attractive in the first place.

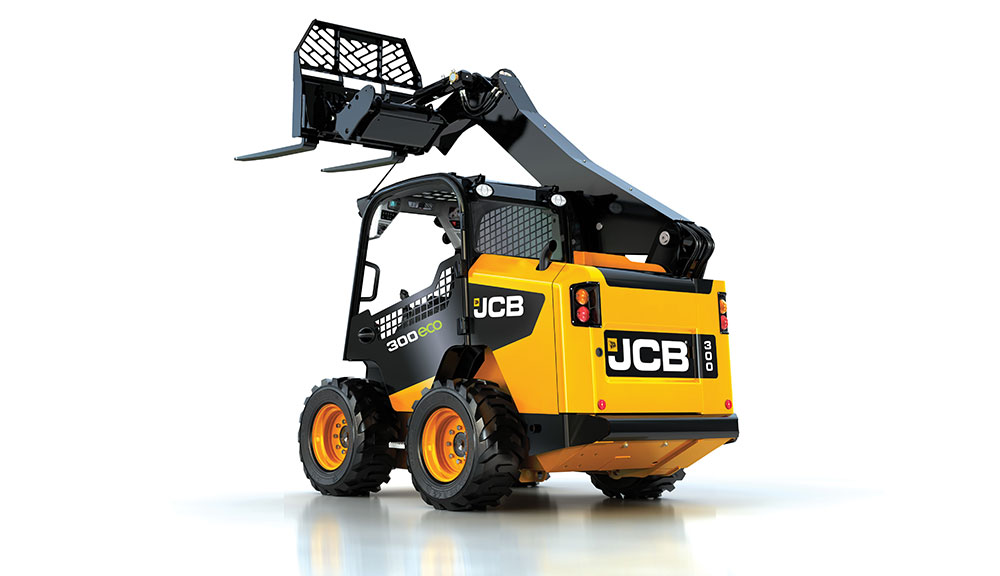

✓The side-entry door means operators never climb over the attachment or under a raised boom - on a 3,000 lb-class machine handling heavy loads, that's a meaningful safety edge every shift.
✓The single-arm PowerBoom eliminates the right-side arm for roughly 60% better visibility, and the one-piece boom stays tight and rattle-free after hard hours.
✓At 3,186 lbs of rated capacity it's JCB's strongest wheeled skid steer, comfortably handling brick packs, seed pallets, and full concrete mixing duties.
✓The 74 hp EcoMAX diesel meets Tier 4 Final with no DPF and no DEF - no regen cycles, no emissions fluid, and less aftertreatment plumbing to fail out of warranty.
✓Vertical lift geometry keeps the load path straight up for clean truck loading at full height with minimal drift over the side.
✓A 23.8 GPM standard circuit with an optional high-flow package up to 33 GPM runs demanding attachments like cold planers and snow blowers.
✓Two-speed travel tops out around 12.4 mph, which is genuinely fast for ground-to-ground moves on large sites.
✓The pressurized cab is among the biggest in the industry with available A/C and heat plus switchable ISO/H-pattern controls.

✗Traditional buyers remain skeptical of the single-boom design, which can narrow the buyer pool when it's time to sell.
✗JCB's compact-equipment dealer network is thinner than Bobcat's, Cat's, or Deere's in much of rural America, slowing parts and service.
✗At 9,288 lbs it needs a serious trailer and truck - this is not a machine you tow behind a half-ton.
✗74 hp is modest for a 3,000 lb-class machine, and rivals like the Bobcat S86 offer notably more engine power in the same weight class.
✗Resale values trail the big four brands because the used market for single-arm machines is smaller.
✗The left-side door is the only entry, so tight parking against that side locks the operator out.
✗Wheels limit it in mud and soft ground where the tracked 300T keeps working - and the track version costs a hefty premium.
✗High-flow hydraulics cost extra, so the attachment-heavy buyers this machine targets end up paying above the base price.
