Case TV450B vs Case TV620B
Quick take: The Case TV450B costs $33,000 less; the Case TV620B has a higher rated operating capacity (6,200 vs 4,500 lbs); the Case TV620B has more engine power (114 vs 90 hp).
| Spec | Case TV450B | Case TV620B |
|---|---|---|
| Price | $92,000 | $125,000 |
| Rating | 4.5★ (260) | 4.4★ (150) |
| Type | Compact Track Loader | Compact Track Loader |
| Lift Path | Vertical Lift | Vertical Lift |
| ROC | 4500 lbs | 6200 lbs |
| Engine HP | 90 hp | 114 hp |
| Operating Weight | 10610 lbs | 16300 lbs |
| Tipping Load | 9000 lbs | 12400 lbs |
| Lift Height | 131.6 in | 140.2 in |
| Hydraulic Flow | 24.2 GPM | 24.2 GPM |
| Engine | FPT | FPT |
| Tracks | Yes | Yes |
| Vertical lift | Yes | Yes |
| High-flow | Yes | Yes |
| Enclosed cab | Yes | Yes |
| Two-speed | Yes | Yes |
| Self-leveling | Yes | Yes |
| A/C & heat | Yes | Yes |
| Warranty | 2 yr / 2000 hr | 2 yr / 2000 hr |
Pros & cons

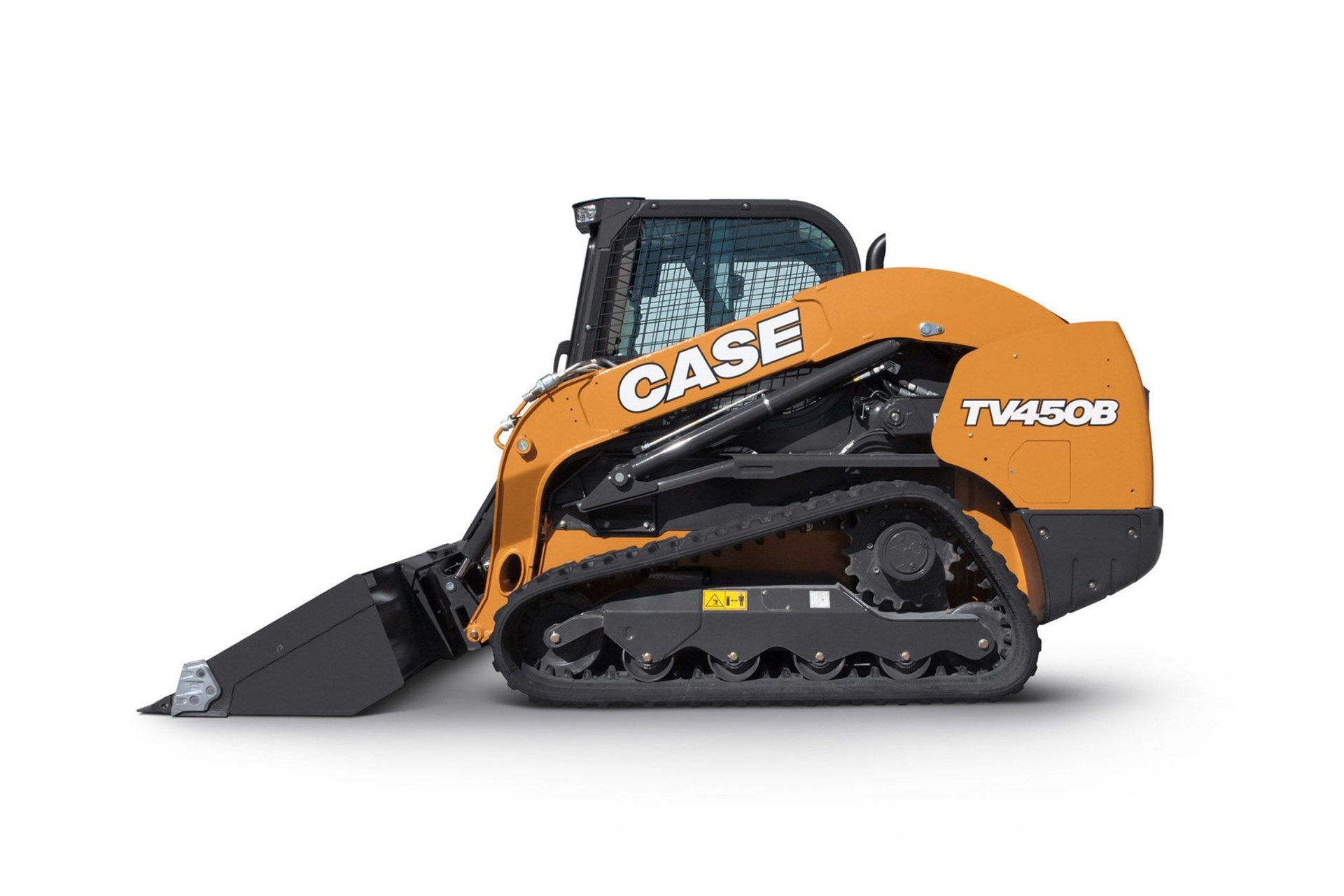

Case TV450B
- ✓The 4,500 lb rated capacity handles full pallets of block, sod, and stone that make 3,000 lb-class machines nervous, and owners say it genuinely replaces a small wheel loader.
- ✓The optional enhanced high-flow package delivers hydraulic power at 4,000 psi, letting it run cold planers and heavy mulchers that usually demand a 110 hp machine.
- ✓The 90 hp FPT's 282 lb-ft of torque pulls hard into piles without bogging, and operators consistently note it feels stronger than the spec-sheet horsepower.
- ✓Vertical lift with a 131.6-inch hinge pin height places loads well over high-sided dump trucks and hopper feeders with room to spare.
- ✓Case's cab is one of the widest in the industry, and the huge door opening, low entry, and standard backup camera win over operators cross-shopping Bobcat.
- ✓At 10,610 lbs it delivers near-Cat 275 capacity for meaningfully less money, and value-focused buyers say the price per pound of ROC is hard to beat.
- ✓The one-piece welded lift arm and chassis stay tight over thousands of hours where multi-piece arms develop slop, according to long-term owners.
- ✓Ride control and two-speed travel keep material in the bucket on long ground moves, making it productive on big open sites.
- ✗Unlike the 74 hp TV370B's DEF-free setup, the 90 hp engine uses SCR aftertreatment, so you're back to filling a DEF tank and living with dosing-system sensors.
- ✗The 'operator not fully present' seat sensor faults common to B-series machines can lock out hydraulics until sensors are cleaned or replaced.
- ✗Case's construction dealer network is thinner than Bobcat's or Deere's in many areas, and owners report longer waits for FPT and undercarriage parts.
- ✗At 10,610 lbs plus a trailer you're into CDL territory in many states, a jump owners coming from mid-frame machines don't always anticipate.
- ✗Owners report electrical gremlins and display glitches on B-series machines, with dealer software updates a recurring fix on the forums.
- ✗Enhanced high-flow, ride control, and the premium cab package are expensive options that push a well-equipped unit well past base price.
- ✗Resale values trail Bobcat, Cat, and Deere, so the attractive purchase price gives some value back at trade-in time.
- ✗The rigid-mount undercarriage rides rough at speed compared to torsion-suspended machines like ASV, and tall vertical-lift towers limit rearward visibility.

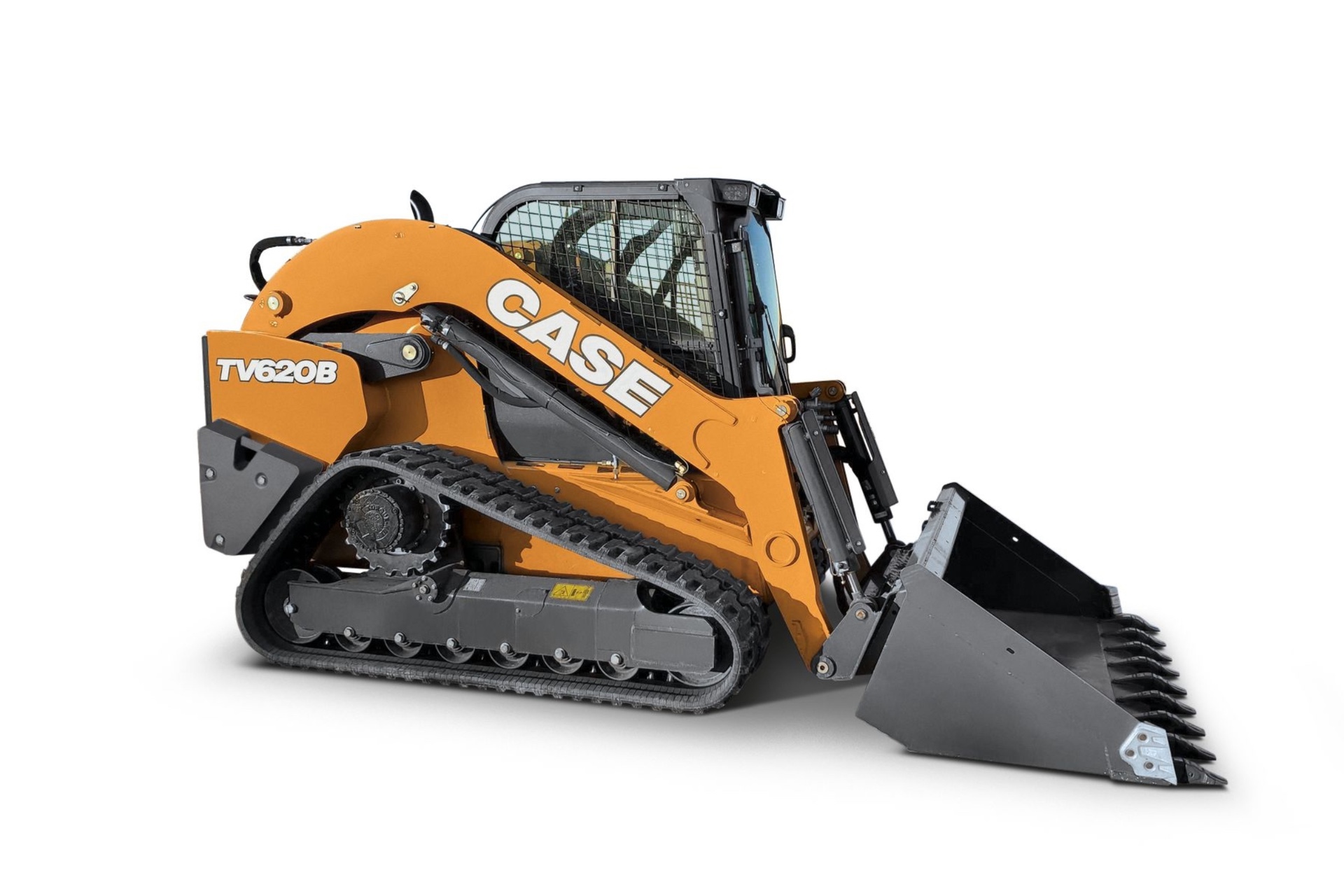

Case TV620B
- ✓The 6,200 lb rated capacity and 12,400 lb tipping load are the biggest numbers in the CTL industry - it lifts pallets of block that would flip a Cat 299D3 or Bobcat T86.
- ✓12,907 lbs of bucket breakout force and 339 lb-ft of torque let it doze and strip topsoil like a small crawler dozer, and owners routinely use it with a 6-way blade.
- ✓The 140.2-inch hinge pin height loads full-size dump trucks and even end-dumps with ease - clearance no other CTL matches.
- ✓The 41.6 GPM high-flow option through a 3/4-inch coupler feeds the hungriest mulching heads and cold planers without starving them.
- ✓Case fit the same wide, pressurized B-series cab with a huge door and 360-degree visibility, so the biggest CTL is also one of the most comfortable.
- ✓Owners doing forestry mulching and land clearing say it holds hydraulic power on slopes and in heat where smaller machines derate.
- ✓It undercuts the cost of buying a small dozer plus a large CTL, and contractors say one TV620B replaces two machines on many jobs.
- ✓The heavy-duty undercarriage and one-piece chassis are built for the weight, and early adopters report the structure shrugs off work that batters lighter frames.
- ✗At 16,300 lbs before attachments, hauling it requires a 20k+ trailer and a CDL - a logistical and licensing hurdle many buyers hit only after purchase.
- ✗Ground pressure of 6.1 psi is the highest in the B-Series, so despite the tracks it will rut soft lawns and wet ground worse than smaller CTLs.
- ✗The 114 hp engine uses SCR aftertreatment with DEF and a DOC, bringing back the emissions plumbing that Case's 74 hp models famously avoid.
- ✗Its sheer size defeats the point of a 'compact' loader on tight sites - it won't work between houses or through gates where mid-frames live.
- ✗The premium price puts it against small dozers and compact wheel loaders, and some buyers conclude a purpose-built machine serves them better.
- ✗Fuel burn is substantial under load, and owners report it drinks closer to a small excavator than a typical CTL.
- ✗Case's thinner dealer network is a bigger risk on a flagship machine - undercarriage and FPT parts delays idle a very expensive asset.
- ✗Tracks, rollers, and idlers for a 16,000 lb machine cost dramatically more to replace than standard CTL undercarriage parts.
