New Holland

New Holland C362

$115,000before options, dealer-quotedVertical LiftRubber tracks
New Holland C362
Rated capacity of tipping load50%
6,200 lb rated12,400 lb tipping

The bright segment is what New Holland C362 is rated to carry; the grey run past it is the rest of its tipping load. Bar length is tipping load drawn to the same scale on every machine on the site, so a short bar is a smaller machine and not a conservative rating.

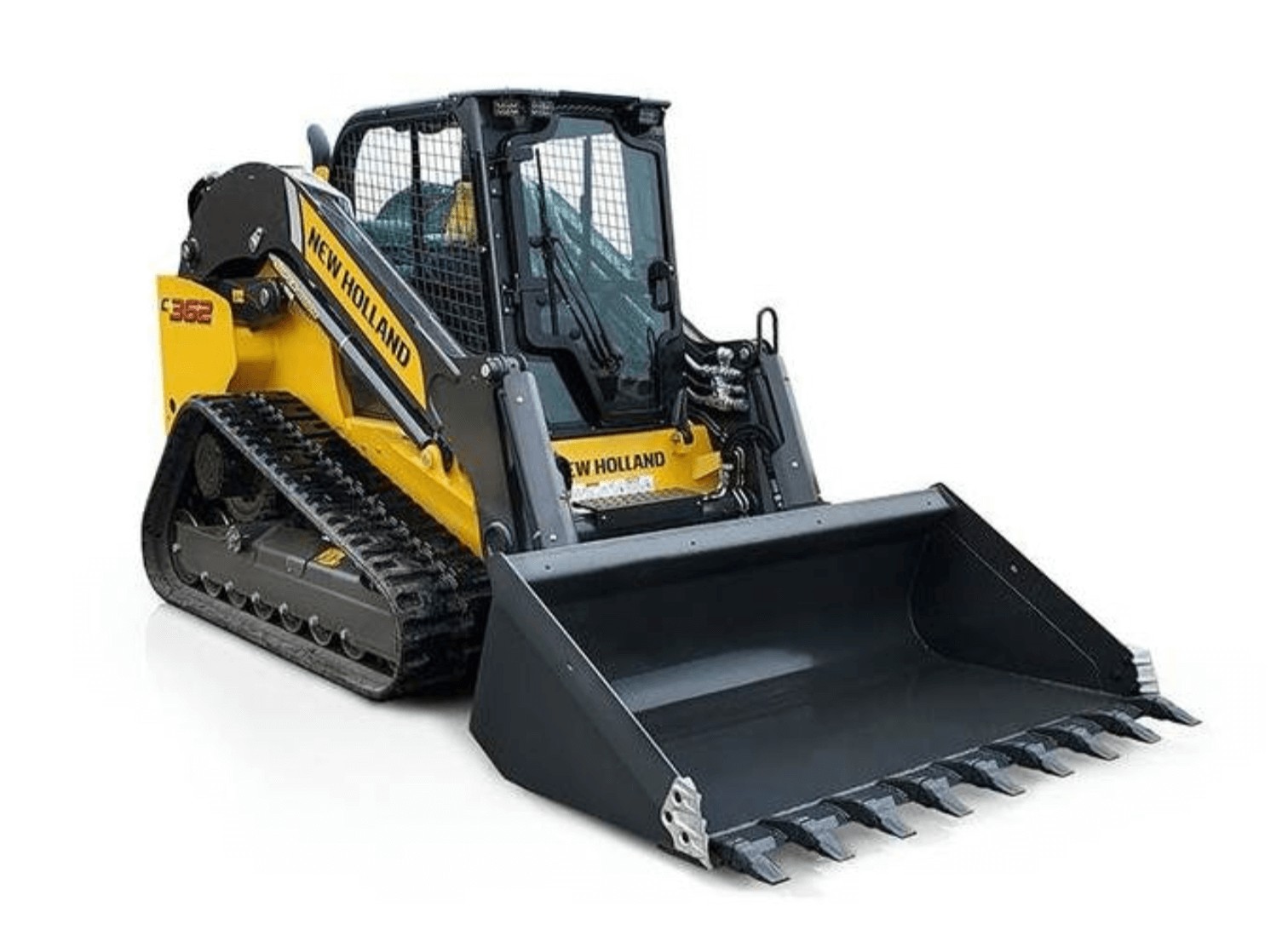

At 16,100 lbs the C362 is the giant of the 300 Series - a compact track loader with a 114 hp FPT diesel, Super Boom vertical lift, and 6200 lbs of rated capacity. It competes with the largest CTLs on the market, blurring the line with small wheel loaders.

Also sold as

The same machine is sold as the Case TV620B — different paint, different dealer network, same hardware, so the choice is usually about which dealer is closer and which one you would rather owe a service call to.

Suits: Heavy contractors and large operations replacing a small wheel loader with one high-capacity CTL Its vertical lift path reaches highest at full extension, for loading high-sided trucks and stacking.

Lifting and reach

Rated operating capacityTrack loader rating convention
6,200 lbs
Tipping load
12,400 lbs
Lift path
Vertical Lift

Power and hydraulics

Auxiliary flowStandard circuit
24.2 GPM
Flow type
Standard
Warranty
2 yr / 2,000 hr

Fitted or available

What this machine can be ordered with. Some of these are standard and some cost extra, and which is which moves between trim levels, so check them against the quote rather than against this list.

Vertical LiftHigh-FlowEnclosed CabTwo-SpeedSelf-LevelingA/C & HeatTracksA/CHigh-Flow Available

What owners report

Summarised from the sources listed below. Nothing here was tested by us.

Scale is the entire argument. This is the largest and most powerful loader New Holland has ever built, a 114 hp vertical-lift machine at 16,100 lb with 12,900 lbf of bucket breakout, and people buy it to do work that would otherwise mean renting a dozer or a small wheel loader. The Super Boom linkage gives it the longest reach in the family, up to 39 inches, which is what lets it load the centre of a trailer rather than the edge.

The operator side is unusually well developed for a machine this big: electro-hydraulic controls with a creep mode graduated across a hundred increments, automatic straight-line tracking for uneven ground, an 8-inch display with an integrated backup camera, and a pressurised cab with an optional heated air-ride seat. Underneath is the low-profile undercarriage the brand uses throughout, steel-embedded tracks rolling on rubber with few moving parts, and 12.6 inches of ground clearance. What owners of this generation actually complain about is not structure but electronics and emissions hardware, and New Holland's construction dealer coverage is thin outside farming country.

The number to get straight before you shop it is the capacity. The 6,200 lb headline is quoted at 50 percent of tipping load where nearly every rival quotes at 35 percent; New Holland publishes that figure too, 4,340 lb, and it is the one to compare. It is a badge twin of the Case TV620B off the same Wichita line, so the practical decision is often which dealer you would rather owe your uptime to. Before signing, confirm your trailer and licence situation at 16,100 lb, and price a full undercarriage so the number is not a surprise at 2,000 hours.

What owners like

  • Nothing else in the line comes close to it: 114 hp, 12,900 lbf of bucket breakout and 66 inches of track on the ground at 16,100 lb. Buyers step up to this specifically to stop renting a small dozer for stripping and pushing, and the breakout figure rather than the horsepower is what makes that substitution work.
  • Super Boom vertical lift gives it the longest reach in the family - over 100 inches of dump height with up to 39 inches of dump reach - so it places material in the middle of a semi trailer or a tall hopper instead of on the near rail. Lift cycles are quick for the mass at 4.18 seconds up and 2.18 seconds down.
  • The electro-hydraulic controls include a creep mode graduated in one-to-100 increments, which is a far finer range than the twenty-step systems common elsewhere, plus automatic straight-line tracking that holds a line across uneven ground without constant correction. On a cold planer or a trencher that resolution is the difference between a clean pass and a corrected one.
  • The undercarriage is the low-profile design New Holland and Case use across the line, with steel-embedded tracks running on rubber and deliberately few moving parts - built for durability and noticeably quieter than steel-roller-on-steel arrangements. Ground clearance is 12.6 inches, the most generous in the New Holland track loader range.
  • It is a badge twin of the Case TV620B, built on the same line in Wichita, so the identical machine is available from whichever of the two dealer networks is closer and better run. Owners and dealers who have handled both describe them as the same machine apart from the operator station: Case uses a lap bar where New Holland uses a seat-belt sensor, Case builds in side lights, and New Holland can be specified with foot or joystick controls where Case is generally joystick only.

What owners complain about

  • The headline capacity is not measured the way its rivals measure theirs. New Holland quotes 6,200 lb at 50 percent of tipping load, while Bobcat, Cat, Deere, Kubota, Takeuchi, ASV and JCB all quote at 35 percent. A 50 percent rating holds back less reserve at the same quoted number, so the bigger figure is the less conservative one, not the more capable one. New Holland publishes the honest cross-shopping number itself - 4,340 lb at 35 percent tip, against a 12,400 lb tipping load - and that is the figure to put next to a competitor's spec sheet.
  • Because the 50 percent convention is so much less common, a buyer comparing brochures side by side will see 6,200 lb here against roughly 4,000 lb on a rival and conclude this machine carries half again as much. It does not. Independent spec guides normalise the whole New Holland line to 35 percent for exactly this reason, and the gap in real capacity is a fraction of what the advertised numbers suggest.
  • At 16,100 lb before a bucket it needs a 20,000 lb trailer and, in most states, a combination heavy enough to require a commercial licence. That is a licensing and logistics problem owners routinely discover after delivery rather than before, and it can quietly add a truck and trailer to the purchase.
  • Its footprint defeats the point of a compact loader. It will not fit between two houses, through a backyard gate, or into the access a mid-frame machine treats as routine - so it is an addition to a fleet rather than a replacement for one.
  • Purchase price and running costs land in small wheel loader territory, and buyers who only load trucks often conclude a wheel loader is the better tool, since it is faster on tyres and has no undercarriage to consume.
  • Undercarriage sized for a 16,000 lb machine is the largest recurring cost of ownership here, and tracks, rollers, idlers and sprockets for this class cost substantially more than ordinary mid-frame components. On abrasive or rocky ground that bill arrives sooner than owners expect.
  • This is the most electronically complex machine in the line, and experienced owners of modern machines from this family are consistent that the newer ones give more trouble simply because there is more on them - more electrical, more emissions hardware, more cab electronics. Combined with New Holland's thin construction dealer coverage outside farming regions, a fault that needs dealer software can mean a long wait.

Drawn from construction.newholland.com, compactequip.com, constructionequipmentguide.com, redpowermagazine.com, skidsteerattachments.ca.

What buyers ask

Is the C362 really a 6,200 lb machine?
Not on the basis most of the industry uses. New Holland quotes 6,200 lb at 50 percent of tipping load, while Bobcat, Cat, Deere, Kubota and Takeuchi quote at 35 percent. New Holland also publishes the 35 percent figure - 4,340 lb, from a 12,400 lb tipping load - and that is the number to use when comparing against another brand's brochure. A 50 percent rating keeps less in reserve at the same quoted capacity.
How is it different from the Case TV620B?
They are badge twins built on the same line in Wichita, sharing frame and drivetrain. The differences are in the operator station: Case uses a lap bar and New Holland a seat-belt sensor, Case has built-in side lights, and New Holland can be ordered with foot or joystick controls where Case is generally joystick only. Since the machine is effectively the same, dealer proximity, parts stock and service quality should decide which badge you buy.
What does it take to transport?
At 16,100 lb before a bucket or attachment you need a trailer rated around 20,000 lb and a tow vehicle to match, which in most states means a combination heavy enough to require a commercial licence. This is the most commonly underestimated cost of the machine, and it is worth settling before you sign rather than after delivery.
Should I buy this or a small wheel loader?
If your work is mostly loading trucks on firm ground, a wheel loader is usually faster, cheaper to run and has no undercarriage to consume. The track loader earns its keep on soft or sloped ground, where flotation and traction let it work when a wheeled machine cannot, and when you need one machine that both digs and runs attachments. Many buyers at this size end up deciding on ground conditions rather than capacity.
What are the running costs to plan for?
Undercarriage dominates. Tracks, rollers, idlers and sprockets sized for a 16,000 lb machine cost substantially more than mid-frame parts, and abrasive or rocky ground accelerates all of it. Beyond that, the emissions system and the cab electronics are what owners of this generation report putting machines in the shop, rather than anything structural.
How good is dealer support?
It depends heavily on where you are. New Holland's strength is agricultural regions, where dealers are dense and service is genuinely good; in urban construction markets, Case dealers tend to be closer and better stocked for this kind of machine. Since the two are the same machine, check both networks before choosing a colour - it is the single factor most likely to affect your total cost of ownership.
